Anesthesia Workstation

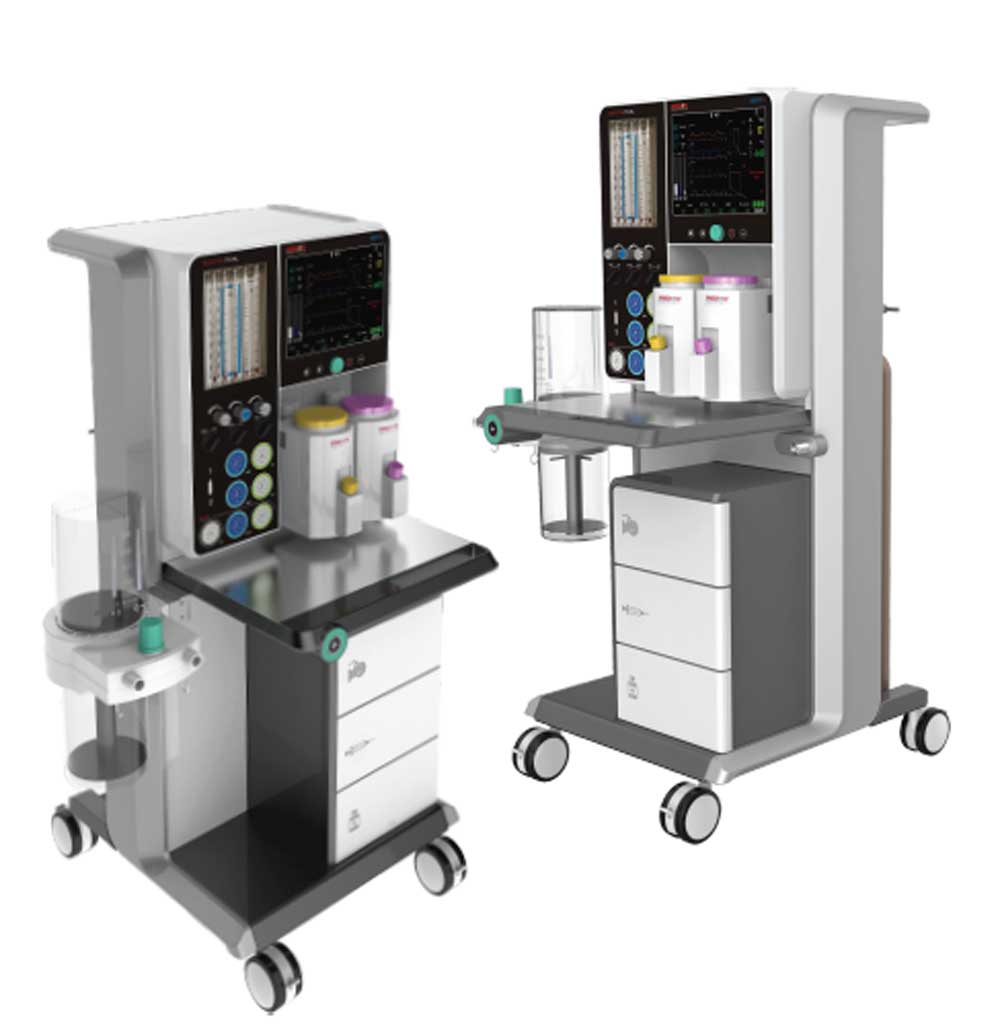

The Medivent Grand is a complete Anaesthesia Workstation with high-end features and modern ventilation capabilities. The Hypoxic Guard, Oxygen Failure Protection, ORC and in-built FiO2 Monitoring are some of the basic features. The ventilator is electronically controlled and pneumatically driven. The ventilator provides volume as well as pressure control modes. The adaptive mode of PRVC ensures delivery of Target Volume at the minimum pressure without the PCV level being set time and again. Also, it delivers Tidal volume after compensating for the loss due to compression of gas in the circuit.

FEATURES -

Capability to operate at a very low FGF
The Tidal Volume is Circuit Compliance compensated
Fresh Gas Flow Decoupling makes the Tidal Volume unaffected by any change in FGF.
Provides for PEEP, Pressure support and Apnea backup ventilation.
Provides Quick Changeover for Open / Closed circuit and N2O / Air operation.
Ascending bellows for visual feedback
Provides for Hypoxic guard and OFPD as standard safety protocol
Provides for 2 hrs. Battery backup.

SPECIFICATIONS -

Dimensions (H x W x D): 1460 x 580 x 750 mm
Weight with Vaporizer: 84 kg (approx)
Flow control: 0 to 20 L/min through 5 tube Rotameter columns
Gas inlet: 2 pin index yokes and 4 pipeline connectors
Backbar : For two Selectatec vaporizers with interlock safety mechanism
Ventilator display: 8.4 inch colour TFT
Ventilation modes: CMV (VC), CMV (PC), PRVC, SIMV (VC), SIMV (PC) and SPONT
Tidal volume: 20 to 1500 ml
Respiration rate: 1 to 40 bpm
Inspiratory time: 0.3 to 3 seconds
Electronic PEEP: 3 to 30 cmH2O
PCV: 0 to 40 cmH2O
PSV: 0 to 30 cmH2O above PEEP
Sensitivity: 0.5 to 8 cmH2O
Monitored data: Tidal vol, Minute vol, Peak pressure, Plateau pressure, Mean airway Pressure and FiO2
Alarms: Low / high Vt, low / high peak pressure, Low / high FiO2.
