General Technical Specification

•   1 Ligate (Vessel Seal)
•   1 Bi-TUR (Bipolar Saline Resection)
•   2 Monopolar
•   1 Bipolar
•   EndoCut <
•   Maximum Power output 400 watts
•   Randomized Spray
•   Auto Start and Auto Stop Bipolar
•   Auto Stop Monopolar Coagulation
•   Simultaneous Coagulation
•   Adaptive Patient Plate Contact Quality Monitor
•   98 PER
•   Defibrillator Proof Output (CF)
•   Less than 8 Kg (portable)

Applications Categories

•   TURP, TUVP, TUEB, TCRE
•   Bariatric Surgery
•   Vaginal Hysterectomy

•   Gynecology
•   Hysterotomy
•   Thoracic
•   Gastroentrology <
•   Laparoscopy
•   Pelviscopy
•   Cardiac
•   Plastic
•   Reconstructive Surgery
•   Casualty & General surgeries
•   Under Water Surgeries
•   Urology
• Neuro Surgery

General Features

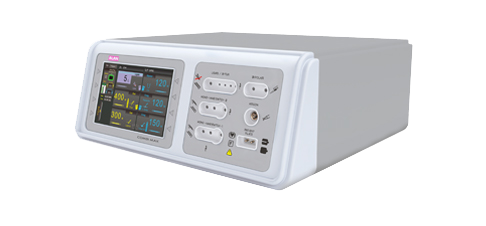

•   Advanced Electro Surgical Generator / Electro Cautery / Electro Diathermy with standard Monopolar and Bipolar outputs and other most advanced functions / Modes like Vessel Sealing, Bi-TUR, etc in a single unit.
•   Can Seal up to 7mm Vessels, and average sealing time is 4 Sec.
•   High efficient Bi-TUR system, generates plasma instantly around the loop and results smooth and effectless resection.
•   199 User settable profiles stores all user preferences like Mode, Power, Footswitch, Surgeon name and procedure name etc.
•   User Friendly touch screen interface
•   Isolated Monopolar & Bipolar outputs
•   Built in stabilizer
•   Wide angle colour LCD touch screen display
•   Auto start, Auto stop coagulation in bipolar
•   Patient Plate, HF Leakage, RF activation etc. are monitored in real time for maximum patient safety
•   Simultaneous coagulation facility in monopolar
•   Independent different settings for 2 monopolar outputs
•   User settable maximum RF activation timeout limit
•   Graphical patient plate contact quality indication
•   Digital volume control and audible & visual alarm
•   Single touch switch over from one mode to another mode
•   Randomized spray ON/OFF control in monopolar coagulation
•   User ettable brightness & contrast control for LCD to improve visibility
•   Optional provision to connect footswitch for each monopolar port
•   Suitable for all under water, Laparoscopic & open surgeries
•   Works on Generator, Inverter & UPS
